MP-Console Spec Sheet

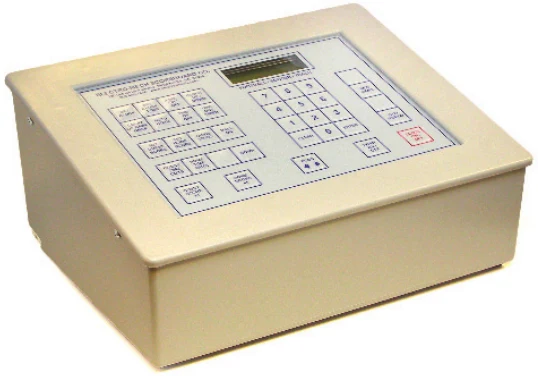

MP-Series Scoreboard Control Console

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Available for the following sport pairings:

Sport-specific configuration (no codes to enter)
Perfect synchronization with multiple scoreboards
Supports Electronic Team Names
Control scoreboard brightness with 50 selectable levels
Support for wired or wireless data transmission
Flash memory for saving game data during power loss
Allows 1/10th seconds to display during the final minute of a Period (except for Baseball)
Allows Horn to automatically sound at the end of a Period
Clock counts up or down, or shows Time of Day
Practice Segment Timer Mode (PST) *not available for Baseball
- Program and recall up to 90 Segments for each two-digit Program ID (up to 45 programs)
- Run PST Programs continuously, or manually start each Segment
- Optional Interval Time between Segments
- Optional automatic Horn at the end of each Segment
- Optional programmable “Flash Time” mode flashes the scoreboard during the final seconds of a Segment

Attached 6-ft. power cord

1/4-inch Stereo Data Output Jack (from 1 to 4 jacks, depending on sport)
RJ-45 style Clock Control Input Jack (from 0 to 2 jacks, depending on Clock options)
